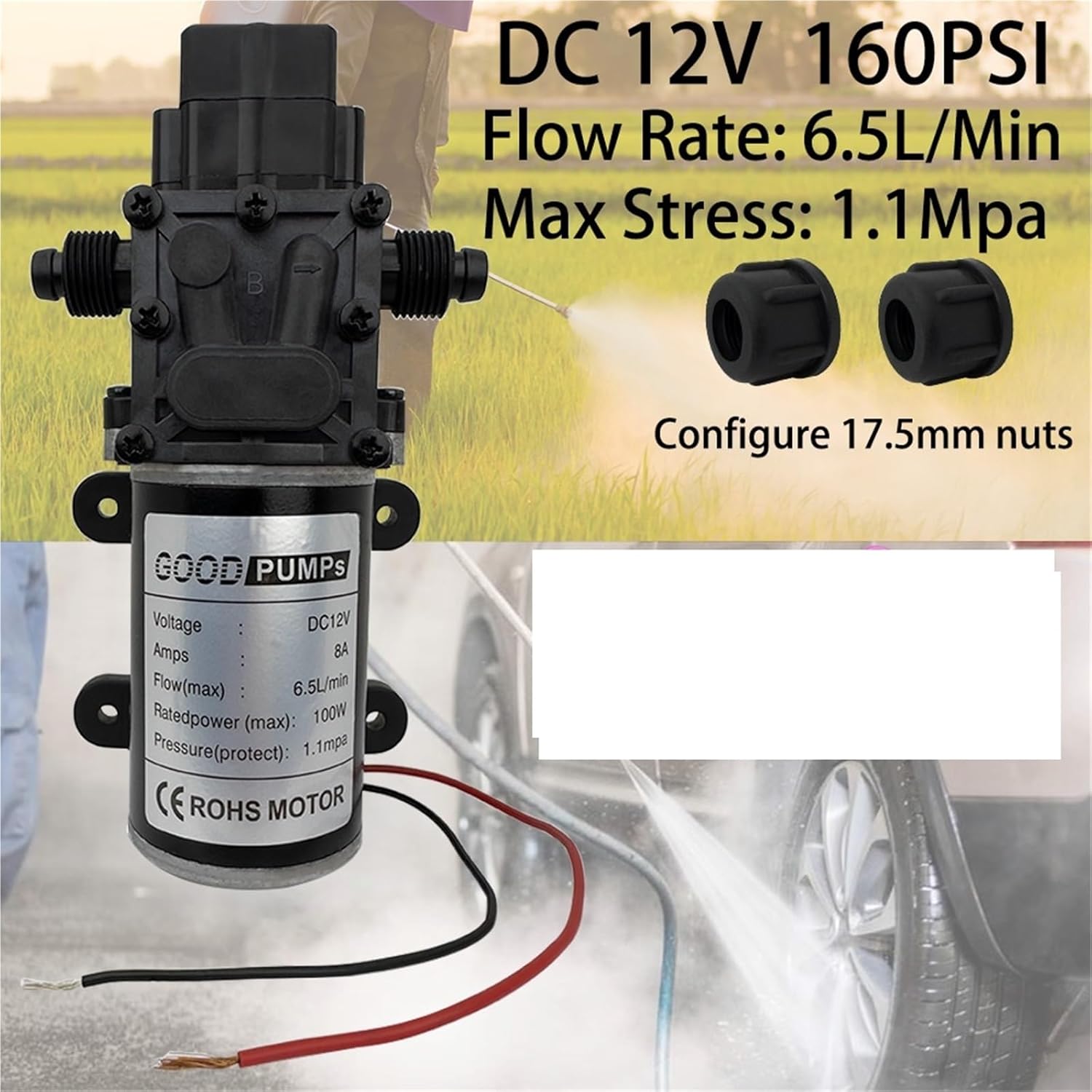

DC12V 160PSI 100W 6.5L/Min High Pressure Diaphragm Pump Mini Electric Self-priming Pump Water Washing Machine Pesticide Spraying(5PCS)

Water Pressure PumpsProduct attributes:Voltage: DC12VAmps 8AFlow Rate: 6.5L/MinSuction lift: 2~3MConveying distance: 60~90MPressure(protect): 1.1MpaRatedpower(max): 100W1. Diaphragm pump combines the advantages of self-priming pump and chemical pump. Installed in a dry, well-ventilated location; pumps can not work in water.2. Using a variety of imported corrosion-resistant materials, self-priming, thermal protection, smooth operation, long-time continuous idling, long-time continuous load operation.3. Totally sealed, high stable pressure.4. Rubber bracket can absorb vibration from the pump when working.5. When the water pressure is too high, pump will protect themselves and normal work, water pipes will not burst, it is safe and .6. The work: intermittent service (continuous working at different working pressures at different times)7. The use of media: water or solvent PH value 5--8, oil. Service life: more than 500-1000 hours of continuous work.8.Pressure Switch Type Features: When the water turned off, it will automatically cut off power,the motor is stopped. After the water turned on, will automatically power on, motor running.Precautions:1. The polarity of the motor wiring must be correct. The red terminal should be connected to the positive pole, and the black or yellow wire should be connected to the negative pole2. The water pump can convey water, weak salts, weak acids, weak bases and other liquids, but cannot convey gasoline or other flammable liquids.3. The pressure adjustment screw can be adjusted by oneself as needed. Before leaving the , the pressure has been adjusted properly. It should not be adjusted unless necessary. It is easy to increase the reflux pressure, which may cause the water pipe to burst4. A filtering device must be installed at the water inlet. Prevent foreign objects from entering; otherwise, it is easy to clog the water pump, causing a decrease in pressure or no water output5. This pump cannot be used for the transportation of low flash point fuels (such as gasoline and petroleum gas). It is strictly prohibited to pump corrosive strong acids, strong alkalis, salt water, vinegar, etcInstallation of water pipes:It is recommended to use 12MM*8MM or 10MM*6.5MM hoses. These two sizes are more suitable for the inlet and outlet dimensions of this water pumpNotice:After the production of the water pump is completed, it will undergo testing. During the testing, the water pump will be powered on and supplied with water to ensure that it leaves the in perfect condition. The testing will leave some water in the pump. If you find water at the interface of the water pump after receiving the package, this is normal and there is no need to be surprised. The water remaining in the pump is also for fully lubricating the internal components of the water pump and increasing its service lifeScope of use:It is widely applied in general industrial equipment, pharmaceutical equipment, chemical equipment, agriculture (lawns and gardens), tourist vehicles, special vehicles, ships, beverages, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment1. Solve the water supply for drinking, washing, bathing, using toilets and flushing in vehicles, ships, yachts, boats and other vessels during their use2. Equipment for food and beverage processing and handling, etc., to achieve the transfer, distribution, filling and other operations of fluid food3. Household water supply. For example, water-saving toilets, water-saving toilets, electric toilets, water pipe pressurization systems, etc4. Solar energy industry5. Water purification industry. For example, purification equipment, water treatment equipment, water dispensers, reverse osmosis water purifiers, etc. It can be used as a supporting product for manufacturing enterprises of tissue machines, water dispensers, cola machines, juice machines, dishwashers, disinfection machines, solar bonsai, car glass cleaning, etc6. Other equipment and systems that require liquid transfer, injection and even metering. For example, garbage trucks, water sprinklers, carpet cleaning equipment, floor cleaning equipment==========High-concerned chemical : NoneApplication : SewageTheory : Reciprocating PumpStructure : Diaphragm PumpModel Number : -Standard or Nonstandard : StandardPressure : High PressureCertification : Power (W) : ElectricVoltage : DC12VFlow Rate : 6.5L/MinPower : 100WAmps : 8APressure(protect) : 1.1Mpa
